機器特點

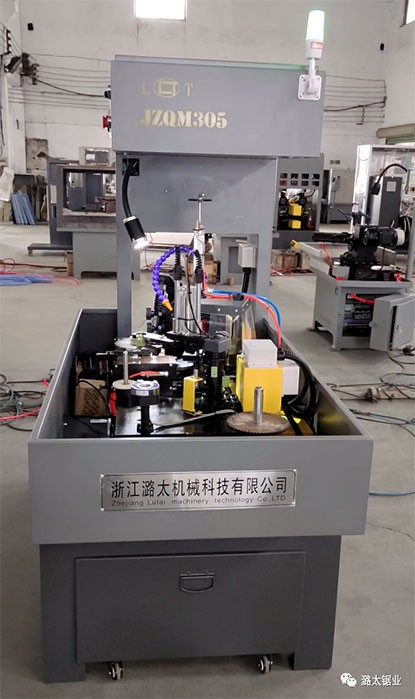

　　◆本機是對合金圓鋸片前角研磨的專用自動化設備。

　　◆采用機械手上下鋸片，操作簡潔方便，一人可操作10臺以上。

　　◆常用齒型可一次性磨削完成，左右齒、左右平、左左左右、右右右左，可任意設定特殊齒形。

　　◆對左右齒進行了優化調整，操作方便，將左齒全部磨完、再磨右齒，減少了磨頭擺動次數。

　　◆砂輪磨削有自動補償功能，砂輪磨損自動補償，保證了齒高差的一致性，提高了產品精度。

　　◆進給采用斜鐵推動方式，提高加工精度。

Machine features

    1. This machine is a specialized automated equipment for grinding the front corners of alloy circular saw blades.

    2. Using a robotic arm to move the saw blade up and down, the operation is simple and convenient, and one person can operate more than 10 machines.

    3. Common tooth profiles can be ground in one go, with left and right teeth, left and right flat, left and right left, right and right left, and special tooth profiles can be set arbitrarily.

    4. The left and right teeth have been optimized and adjusted for easy operation. The left teeth have been completely ground before the right teeth, reducing the number of grinding head swings.

    5. The grinding wheel has an automatic compensation function, which automatically compensates for the wear of the grinding wheel, ensuring the consistency of tooth height difference and improving product accuracy.

    6. The feed adopts an inclined iron pushing method to improve machining accuracy.

技術參數Technical parameter

◆鋸片直徑Blade diameter   φ110-φ305mm

◆齒距范圍Range of tooth pitch   7—48mm

◆適用齒厚Applicable tooth thickness   ≤3.5mm

◆前角角度Front angle   0°~25°

◆砂輪擺角Grinding wheel swing angle   -15°~15°

◆砂輪規格Grinding wheel specifications   φ125×φ20mm

◆砂輪行程Grinding wheel stroke   0—25mm

◆砂輪轉速Grinding wheel speed   5600r/min

◆工作氣壓Operating air pressure   ≥0.45MPa

◆電源電壓Supply voltage   AC380V50Hz

◆功    率Power   2.2KW

◆重    量Weight   750kg

◆機床尺寸Machine size   1632×850×1770mm
